Catching up with the Web App Builder

11th May 2017

Web App builder for ArcGIS can build apps in 2D or 3D, with configurable widgets and themes. These can be standalone apps or included in a public-facing website. I’m going to consider some of the new features and widgets added into Web App Builder and then examine how these are being used in different sectors.

Builder and Application developments

You can switch and link your ArcGIS Online accounts when creating new web apps. Also in the builder environment, you can configure the pop ups from the map tab for clear descriptions in the app. Layers with label configurations are now honoured in the Web App.

Widget enhancements

Widget What’s new
Query the result set can be saved to My Content
Layer List supports showing or hiding layer labels
3D Legend and 3D Layer List support displaying layer hierarchy and terrain layers
Analysis has two new tools: Join Features and Find Outliers
you can now have a Route layer as the result for Plan Routes, Find Nearest and Connect Origins to Destinations
Near Me you can choose the maximum number of results to be returned
Group Filter two date filter clauses have been added: Is on or before and Is on or after
Situation Awareness the snapshot button is disabled when there is no potential impact of an incident in the defined location
the find Closest Address option has improved support for local projections, e.g. British National Grid
Basemap Gallery now excludes unsupported basemaps with differing tiling schemas from the current base map
Info better support for CSV layers

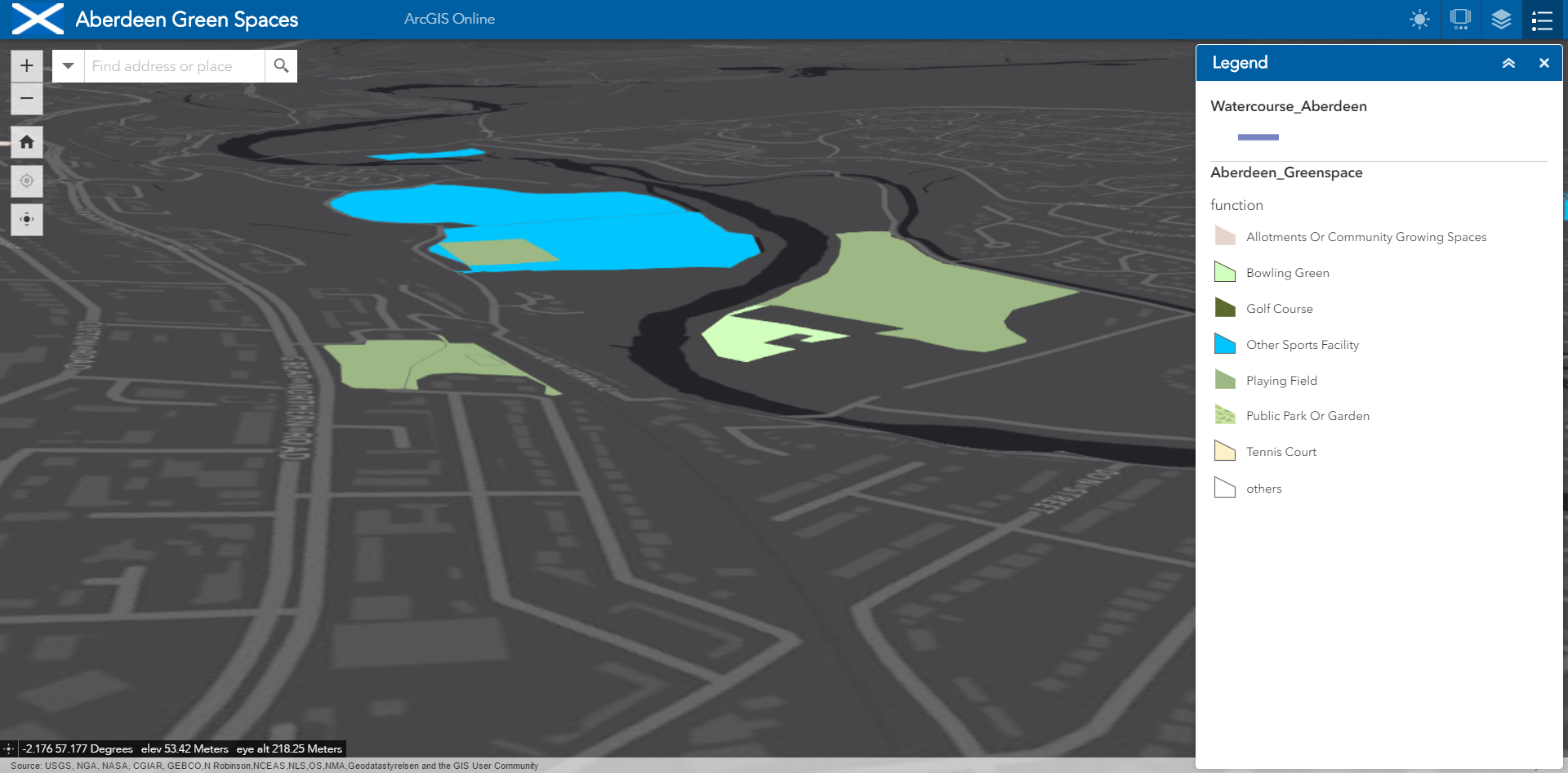

 An example of the legend in a 3D app showing green spaces in Aberdeen

An example of the legend in a 3D app showing green spaces in Aberdeen

The Group Filter Widget in the retail sector

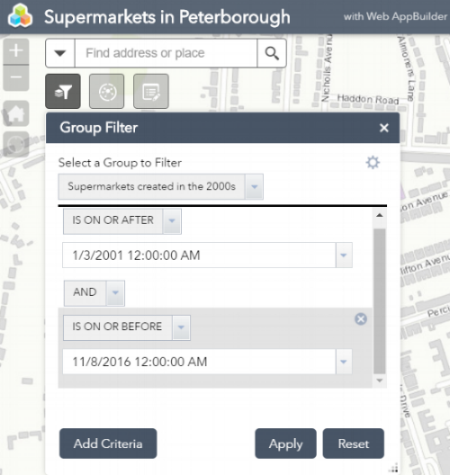

In this Supermarket application, I used the new Group Filter clauses to find supermarkets built in the 2000s. Identifying newer properties may be important in managing a company’s estate.

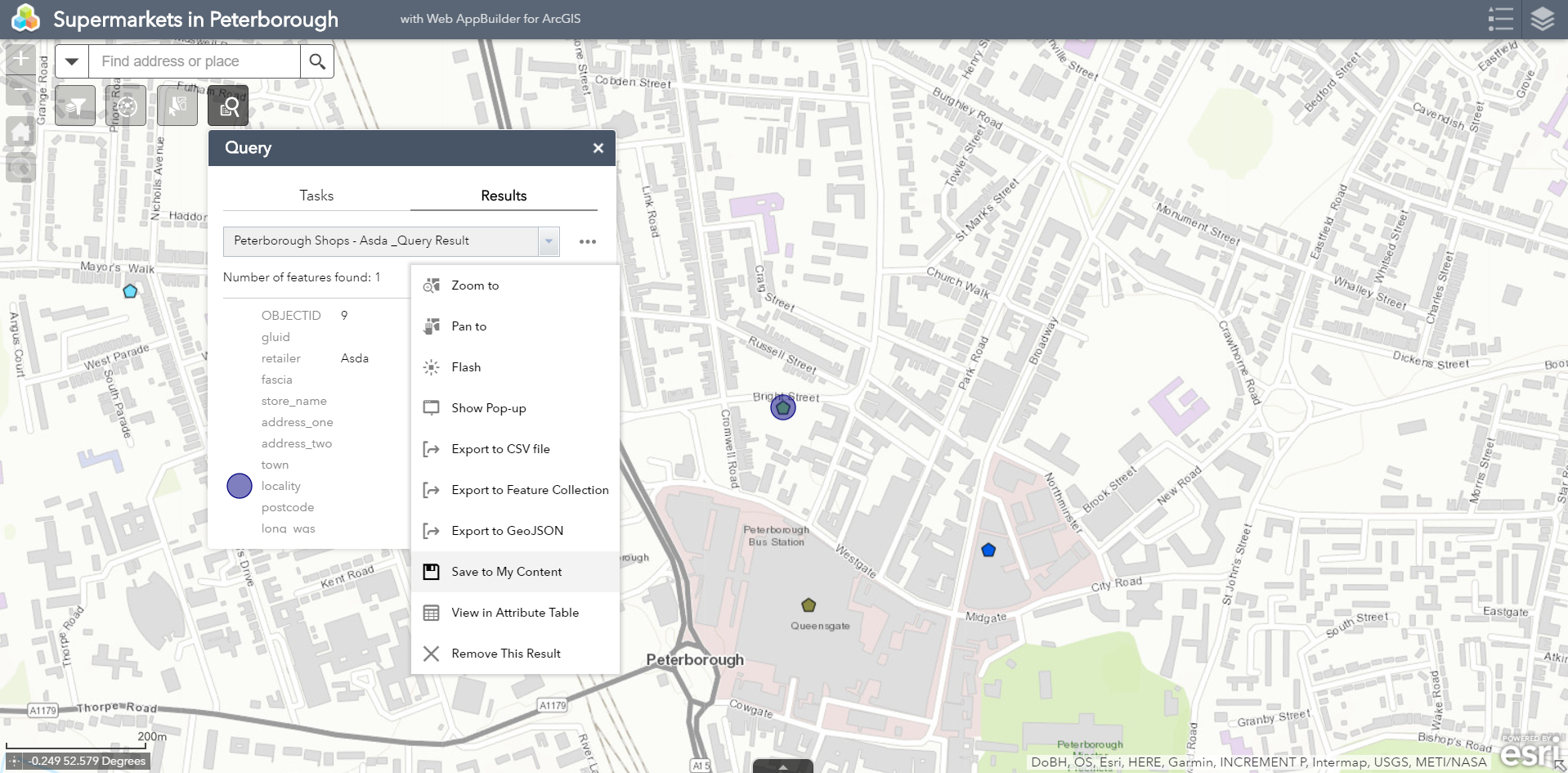

You can now also save Query results to My Content, so the new layer can be used in other maps.

If you want to narrow your search down to the supermarkets nearby, you can limit the number returned by the Near Me widget.

The new label options in a local government app

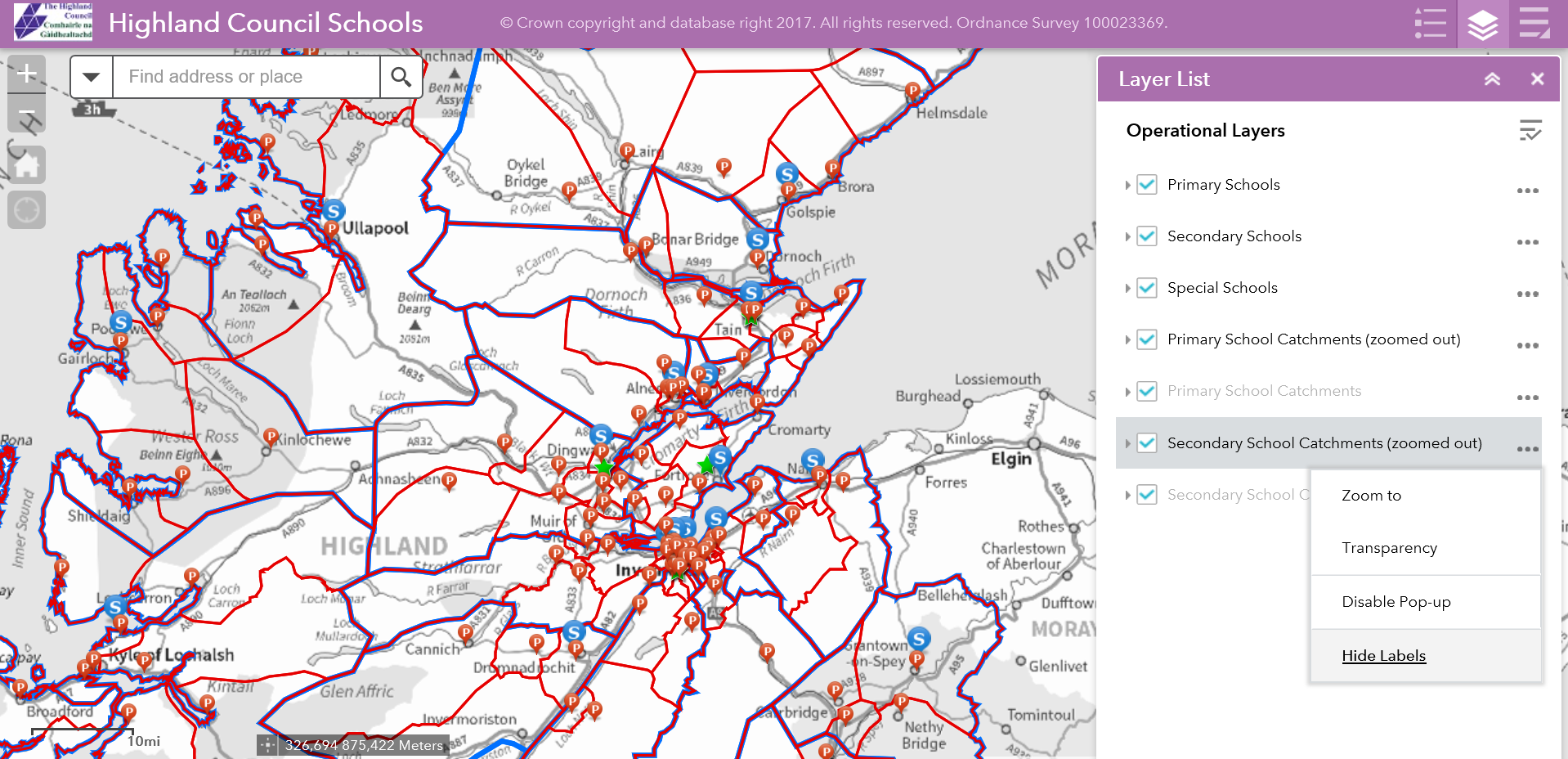

The Highland Council have made several apps for the public to find local information. Their school catchment areas app uses the new context menu option which allows you to show or hide feature labels:

New Analysis tools in public safety applications

I used one of the new tools within the Analysis widget, Find Outliers, to show if any statistically significant outliers or clusters existed in the crime data.

Enable Local Search in a utilities application

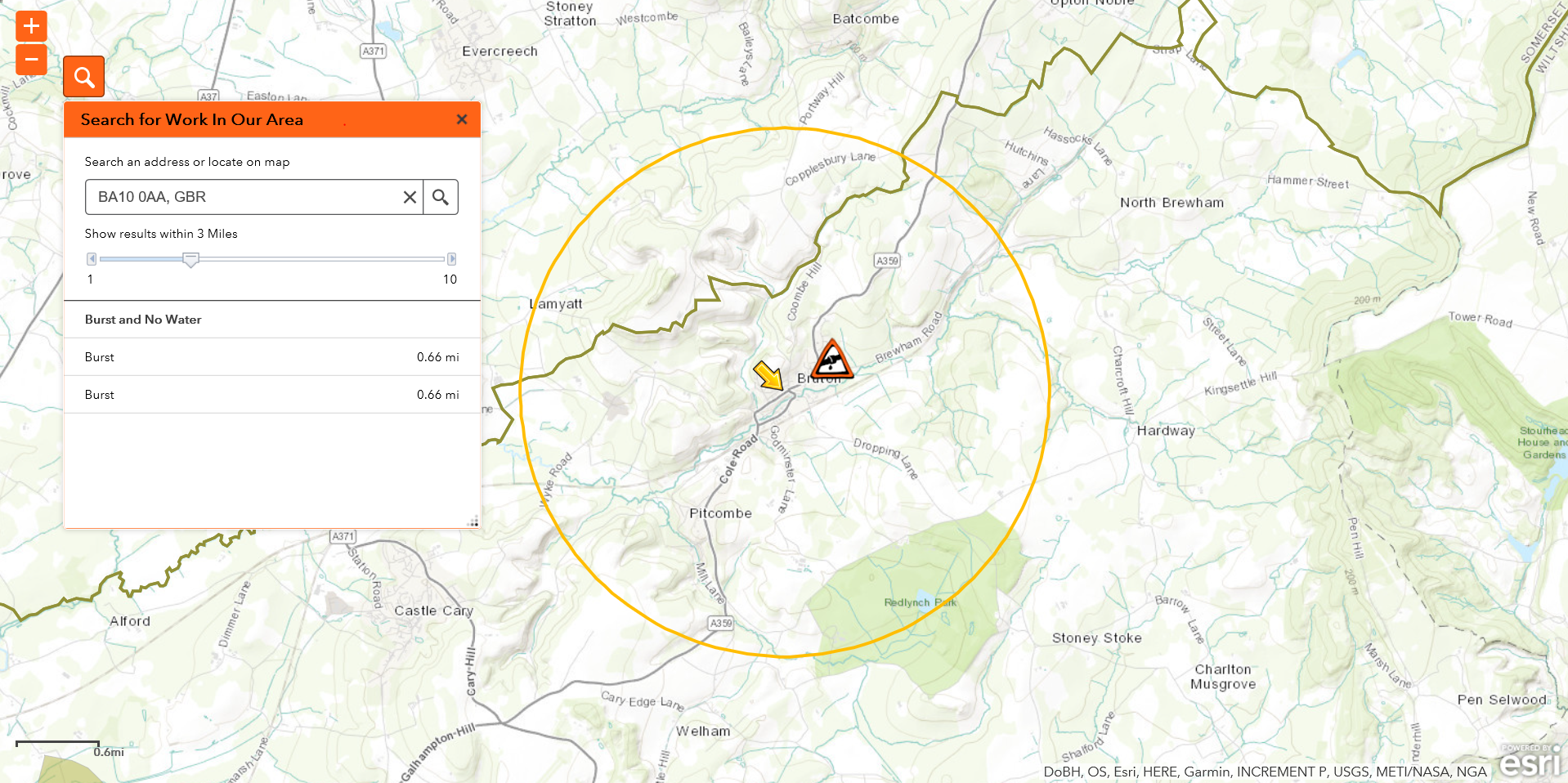

Wessex Water have been making use of the Near Me widget in their Work In Our Area app. This allows customers to type in their location and show issues like burst water pipes within their search radius:

To summarise, many industries have been incorporating the latest Web App Builder updates into their applications. The new updates to the widgets have provided better insights into data with new tools and clearer displays with legend updates in 2D and 3D applications.
